Learn how to complete an indoor evaporator motor replacement on the Furrion Chill low-profile air conditioner with this detailed, step-by-step tutorial. If your RV AC is experiencing airflow issues or blower motor failure, this guide walks you through the full removal and reinstallation process safely and correctly.

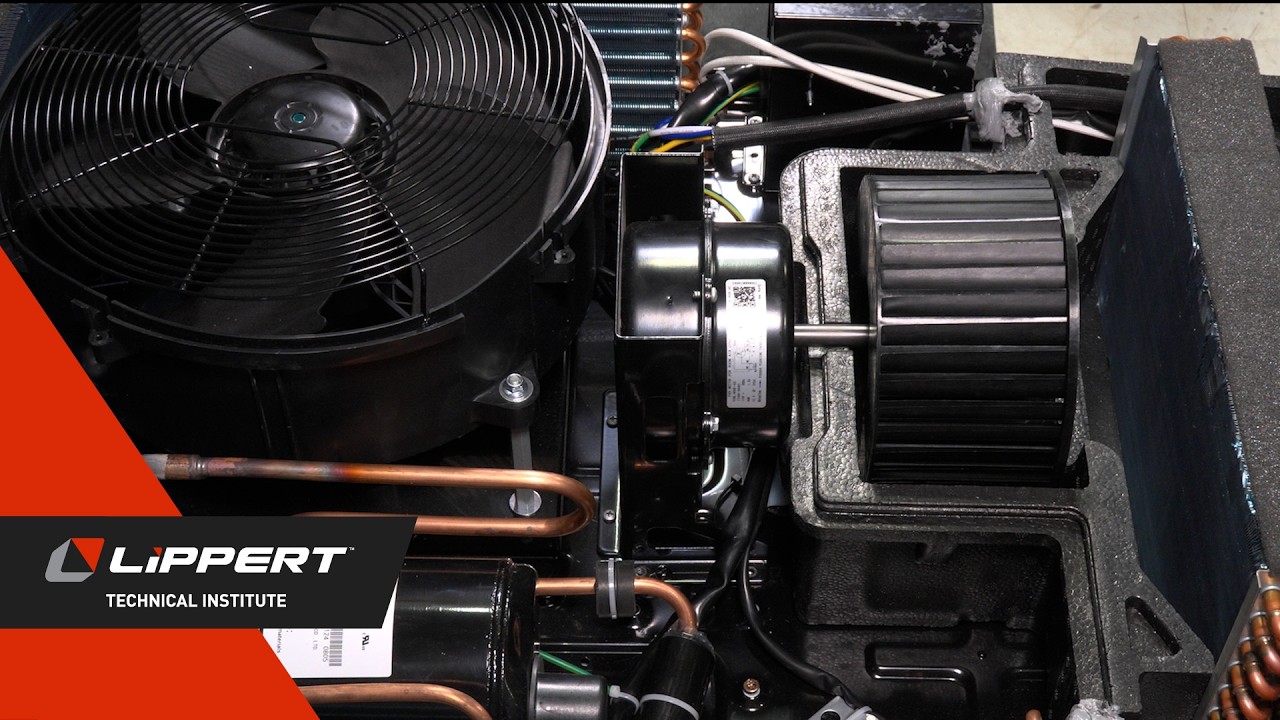

The video begins with critical safety precautions, including disconnecting power to reduce the risk of electrical shock. From there, you’ll see how to remove the outer shroud, access the molded foam enclosure, and detach the evaporator fan motor assembly. The tutorial covers removing mounting screws, cutting zip ties, and carefully disconnecting wiring inside the electrical box.
Special attention is given to handling the capacitor safely, as it can retain stored electrical energy even when power is disconnected. You’ll learn how to disconnect the white and brown wires from the capacitor, remove the ground wire, and depin the black, yellow, and red wires from the control module connector while keeping track of their original positions.
Reinstallation steps include mounting the new motor, repinning and reconnecting the wiring harness, securing all connections, and reinstalling the fan blade using the reverse-threaded nut. The guide finishes with reassembling the bracket, enclosure, and shroud, along with a final check to ensure the fan spins freely and the unit is secure.
This video provides clear instructions to help you restore proper performance to your RV AC system with confidence.
