![Apple ][ Plus Clone Tantalum Troubles: Finding the Short on the 12V Rail (Computerized Start™ Live) @jdmcs](https://i.ytimg.com/vi/y_2k2MA5XMY/maxresdefault.jpg)
Uploaded June 2024 | Updated September 2026, 1 week ago
I've launched a merch shop: shop.jdmcs.com - use code JUSTINTIME for 5% off all Computerized Start™ merchandise through at least May 31th!
*
I bought an "Apple IIe Clone Motherboard" on eBay (the place where I buy the things I later regret™) knowing full well it was an Apple ][ Plus clone motherboard and missing some chips. Yes, COMPUTER was jealous at first, but then COMPUTER realized I needed practice on a similar motherboard before I continue removing sockets, so we're good...

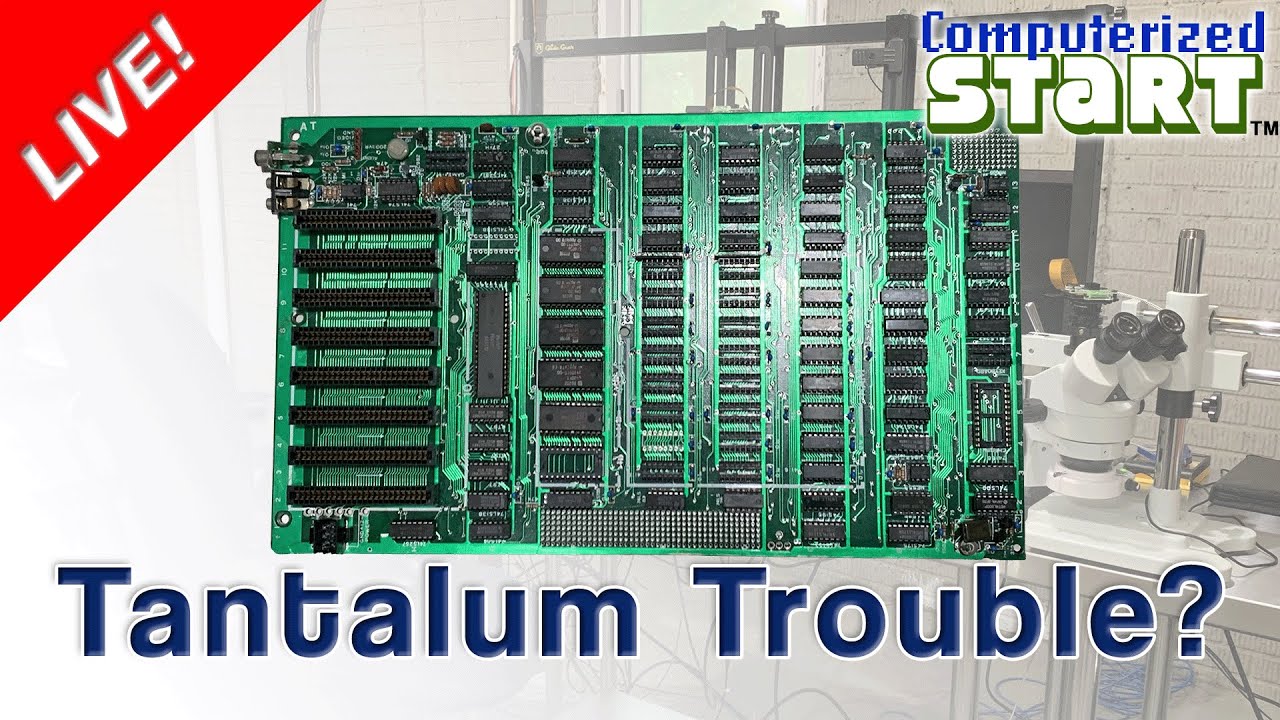

What's not good is this clone motherboard: there is a short on the 12V rail. But after removing all the chips that are on the 12V rail, the short was still present. Then I noticed it: a previous owner replaced ceramic capacitors with tantalum capacitors.
There are no polarity markings for these capacitors, so I suspect the board was designed for ceramic capacitors (like the Apple ][ Plus), and it's likely one or more of these capacitors are installed backwards. Hopefully removing all the tantalum capacitors will remove the short, then I'll replace them with ceramic capacitors.
Will I find the short? Will the ceramic capacitors I bought make the board look "original"? Will I get to powering this motherboard up? You'll have to watch to find out!
*
