6.0 Powerstroke - Metal In the Oil Filter - Tear down and Possible Diagnosis

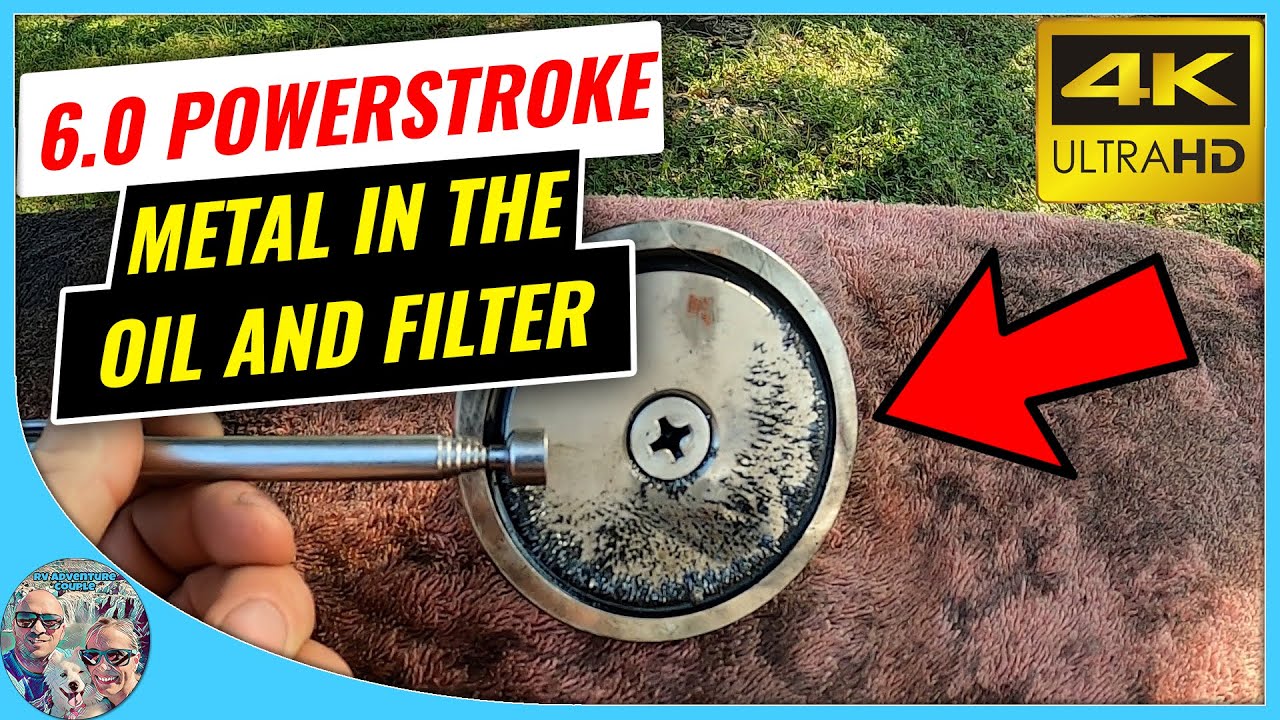

Everyone likes tearing their engine apart right? So I went to change the oil in our 6.0 powerstroke and found metal on the oil drain plug magnet and then in the oil filter. So you guessed it, I have to tear the 6.0 powerstroke apart and see if I can figure out where it came from. Between my last oil changes the only things that happened were having my rear main seal replaced and replacing our old turbo. Side note the new turbo didn't last a week. Hopefully I don't have to pull the entire engine. This video is a bit long but I wanted to include anything that would be relevant to y'all. So I had to pull the turbo back out, then the fan shroud and fan, then the alternators, then I pulled the harness in front of the engine, then I pulled the oil filter housing, then I pulled the intake manifold, then I pulled the oil cooler, then I pulled the low pressure oil pump gears, then I pulled the IPR to inspect the screen. After inspecting everything I came to the conclusion the metal didn't go past the oil filter because the screen under the oil cooler and the IPR screen were clean. So I took the oil cooler completely apart and pressure washed it and cleaned it. I took the old oil and filtered it over a magnet 2 times, each time putting it back in the engine to flush anything in the oil pan out. I am currently waiting on a new screen then I will reassemble the engine and drive it for 500 - 1000 miles and drain the oil again for a final inspection.
-------------------------------------------------------------------------------------------------
Thanks for watching! :)
Links in description are affiliate links. My videos are for educational purpose only. Information
is subject to change/update at anytime.
-------------------------------------------------------------------------------------------------
2005 F250 6.0 Powerstroke Upgrades
-------------------------------------------------------------------------------------------------
ARP Headstuds: amzn.to/33Ow3Kq
STC Fitting: amzn.to/3iMC1BJ
Sinister Diesel Blue Spring Upgrade: amzn.to/3ci8PzV
OEM Dummy plugs & Standpipes: amzn.to/32K9MxS
Mechanical Fan Clutch: amzn.to/2ZQYypy
7.3 to 6.0 Mechanical Fan Clutch Adapter: amzn.to/3kwSD0O
Edge Programmer & Dash Mount Combo: amzn.to/3ccuyt4
GlowShift Fuel Pressure Gauge: amzn.to/3ktgGxB
GlowShift 6.0 adapter: amzn.to/3ccbg74
Gauge Pod: amzn.to/3cbA7bl
ScanGauge 2: amzn.to/3hM91II
Y Pipe Upgrade: amzn.to/3ktgOgz
Bilstein 5100 Shocks: amzn.to/3mxqvwe
Bilstein 5100 Steering Stabilizer: amzn.to/3kth2nV
Sinister Diesel Coolant Filtration: amzn.to/32Psqoh
Oil Cooler Backflush: amzn.to/32cCWEF
---------------------------------------------------------------
